卡斯卡特 软性纸专用纸卷夹（Paper Roll Clamps）_叉车属具_叉车系列_产品中心_厦门永新昌机械设备有限公司
产品信息

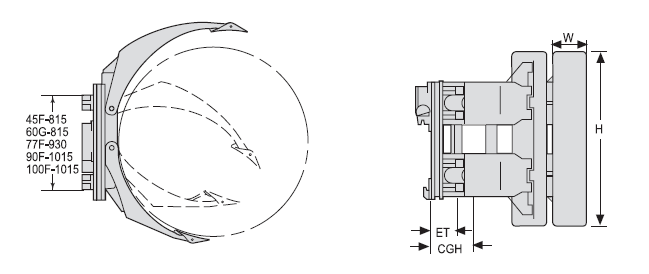

| Capacity 承载能力(kg) | Catalog Order NO 型号 | Mounting Class 安装等级 | Mounting Angle安装角度 | Pad Size夹板尺寸HxW(mm) | Roll Range纸卷直径(mm) | Weight 自重(kg) | Effective 失载距ET(mm) | Horizontal Center of Gravity 水平重心CGH(mm) |
| 1000 | 25F-RTF-A08 | ISO 2A | 0° | 850*300 | 600-1600 | 470 | 150 | 310 |
| 1200 | 25F-RTF-A06 | ISO 2A | 0° | 850*300 | 400-1300 | 430 | 135 | 245 |
| 1700 | 45F-RTF-A607 | ISO 2A | 2° | 1300*350 | 800-1600 | 800 | 183 | 295 |
| 1900 | 77F-RTF-C609 | ISO 4A | 2° | 1600*380 | 800-2500 | 1695 | 198 | 495 |
| 2000 | 60G-RTF-B608 | ISO 3A | 2° | 1400*350 | 850-2100 | 1080 | 176 | 325 |
| 2100 | 60G-RTF-B607 | ISO 3A | 2° | 1300*350 | 685-1800 | 960 | 176 | 300 |
| 2100 | 66G-RTF-B608 | ISO 3A | 2° | 1400*350 | 910-2280 | 1165 | 190 | 335 |
| 2300 | 77F-RTF-C608 | ISO 4A | 2° | 1400*350 | 800-2200 | 1520 | 198 | 440 |
| 2500 | 77F-RTF-C607 | ISO 4A | 2° | 1400*350 | 900-2000 | 1580 | 198 | 400 |
| 2500 | 90F-RTF-C609 | ISO 4A | 2° | 1800*380 | 1250-2500 | 1830 | 188 | 455 |
| 2700 | 90F-RTF-C608 | ISO 4A | 2° | 1400*380 | 850-2200 | 1630 | 188 | 430 |
| 3000 | 110F-RTF-C609 | ISO 4A | 2° | 1800*380 | 850-2500 | 2100 | 260 | 410 |
| 3500 | 120F-RTF-C609 | ISO 4A | 2° | 1800*380 | 850-2500 | 2140 | 260 | 405 |
