卡斯卡特45F 50F 60F系列纸卷夹（Paper Roll Clamps）_叉车属具_叉车系列_产品中心_厦门永新昌机械设备有限公司
产品信息

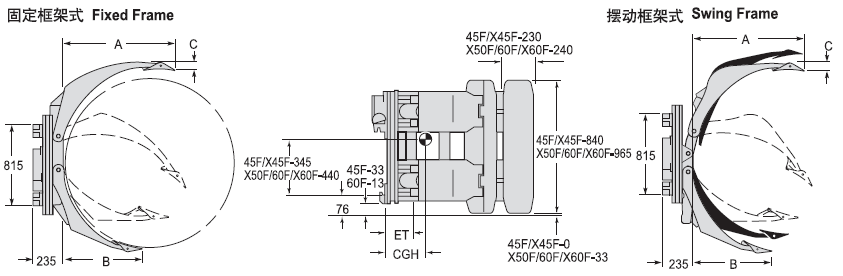

| Capacity 承载能力(kg) | Catalog Order NO 型号 | Mounting Class 安装等级 | Mounting Angle安装角度 | Long Arm Length长臂长A（mm） | Roll Range纸卷直径（mm） | Short Arm Length短臂长B（mm） | Long Arm Thickness长臂厚C（mm） | Type类型 | Weight 自重(kg) | Effective 失载距ET(mm) | Horizontal Center of Gravity 水平重心CGH(mm) |
| 1700 | 45F-RCF-07B | ISO 3A | 0° | 1130 | 680-1830 | 930 | 115 | a | 880 | 237 | 445 |
| 1700 | 45F-RCP-08B | ISO 3A | 0° | 1130 | 380-1830 | 930 | 115 | b | 886 | 237 | 445 |
| 1700 | 45F-RCP-08B | ISO 3A | 0° | 1130 | 380-1830 | 930 | 115 | b | 886 | 239 | 445 |
| 2000 | 45F-RCF-04A | ISO 2A | 0° | 825 | 630-1300 | 570 | 45 | a | 687 | 197 | 282 |
| 2000 | 45F-RCF-04B | ISO 3A | 0° | 825 | 630-1300 | 570 | 45 | a | 681 | 237 | 320 |
| 2000 | 45F-RCF-607A/B | ISO 2A/3A | 0° | 955 | 630-1600 | 775 | 95 | a | 755 | 183/216 | 301 |
| 2000 | 45F-RCP-03A | ISO 2A | 0° | 825 | 250-1300 | 570 | 45 | b | 677 | 197 | 287 |
| 2000 | 45F-RCP-606A/B | ISO 2A/3A | 0° | 955 | 350-1600 | 775 | 95 | b | 765 | 183/216 | 304 |
| 2000 | 45F-RCP-83B | ISO 3A | 0° | 825 | 250-1300 | 570 | 45 | b | 690 | 237 | 325 |
| 2000 | 45F-RCS-23A | ISO 2A | 0° | 825 | 250-1300 | 560 | 45 | c | 717 | 197 | 269 |
| 2000 | 45F-RCS-23B | ISO 3A | 0° | 825 | 250-1300 | 560 | 45 | c | 731 | 237 | 307 |
| 2000 | 45F-RCS-23B | ISO 3A | 0° | 825 | 250-1300 | 560 | 45 | c | 731 | 237 | 307 |
| 2000 | X45F-RCF-002B | ISO 3A | 0° | 825 | 690-1350 | 570 | 45 | a | 665 | 237 | 320 |
| 2000 | X45F-RCF-06A | ISO 2A | 0° | 955 | 530-1500 | 775 | 95 | a | 744 | 197 | 280 |
| 2000 | X45F-RCF-06B | ISO 3A | 0° | 955 | 530-1500 | 775 | 95 | a | 758 | 237 | 304 |
| 2000 | X45F-RCP-001A | ISO 2A | 0° | 825 | 310-1350 | 570 | 45 | b | 652 | 197 | 287 |
| 2000 | X45F-RCP-001B | ISO 3A | 0° | 825 | 310-1350 | 570 | 45 | b | 675 | 237 | 320 |
| 2000 | X45F-RCP-05A | ISO 2A | 0° | 955 | 250-1500 | 775 | 95 | b | 751 | 197 | 283 |
| 2000 | X45F-RCP-05B | ISO 3A | 0° | 955 | 250-1500 | 775 | 95 | b | 765 | 237 | 307 |
| 2000 | X5F-RCF-002A | ISO 2A | 0° | 825 | 690-1350 | 570 | 45 | a | 652 | 197 | 282 |
| 2000 | X5F-RCF-002A | ISO 2A | 0° | 825 | 690-1350 | 570 | 45 | a | 652 | 197 | 282 |
| 2300 | X50F-RCF-002B | ISO 3A | 0° | 850 | 595-1350 | 570 | 65 | a | 738 | 237 | 272 |
| 2300 | X50F-RCP-001B | ISO 3A | 0° | 850 | 330-1350 | 570 | 65 | b | 748 | 237 | 272 |
| 2700 | 60F-RCF-04B | ISO 3A | 0° | 955 | 560-1520 | 685 | 50 | a | 823 | 198 | 307 |
| 2700 | 60F-RCP-03B | ISO 3A | 0° | 955 | 250-1520 | 685 | 50 | b | 830 | 198 | 307 |
| 2700 | 60F-RCS-21A | ISO 2A | 0° | 845 | 250-1300 | 570 | 70 | c | 343 | 203 | 277 |
| 2700 | 60F-RCS-21A | ISO 2A | 0° | 845 | 250-1300 | 570 | 70 | c | 343 | 203 | 277 |
| 2700 | 60F-RCS-21B | ISO 3A | 0° | 845 | 250-1300 | 570 | 70 | c | 858 | 198 | 272 |
| 2700 | 60F-RCS-23A | ISO 2A | 0° | 910 | 250-1520 | 695 | 60 | c | 926 | 203 | 312 |
| 2700 | 60F-RCS-23A | ISO 2A | 0° | 910 | 250-1520 | 695 | 60 | c | 926 | 203 | 312 |
| 2700 | 60F-RCS-23A | ISO 2A | 0° | 910 | 250-1520 | 695 | 60 | c | 926 | 203 | 312 |
| 2700 | 60F-RCS-23A | ISO 2A | 0° | 910 | 250-1520 | 695 | 60 | c | 926 | 203 | 312 |
| 2700 | 60F-RCS-23B | ISO 3A | 0° | 910 | 250-1520 | 695 | 60 | c | 931 | 198 | 307 |
| 2700 | 60F-RCS-23B | ISO 3A | 0° | 910 | 250-1520 | 695 | 60 | c | 931 | 198 | 307 |
| 2700 | 60F-RCS-23B | ISO 3A | 0° | 910 | 250-1520 | 695 | 60 | c | 931 | 198 | 307 |
| 2700 | X60F-RCF-002B | ISO 3A | 0° | 850 | 590-1350 | 570 | 65 | a | 343 | 198 | 272 |
| 2700 | X60F-RCP-001B | ISO 3A | 0° | 850 | 330-1350 | 570 | 65 | b | 759 | 198 | 272 |
| 2700 | X60F-RCP-001B | ISO 3A | 0° | 850 | 330-1350 | 570 | 65 | b | 759 | 198 | 272 |
| 2700 | X60F-RCP-001B | ISO 3A | 0° | 850 | 330-1350 | 570 | 65 | b | 759 | 198 | 272 |
