发电机组配件CH11024紧张轮

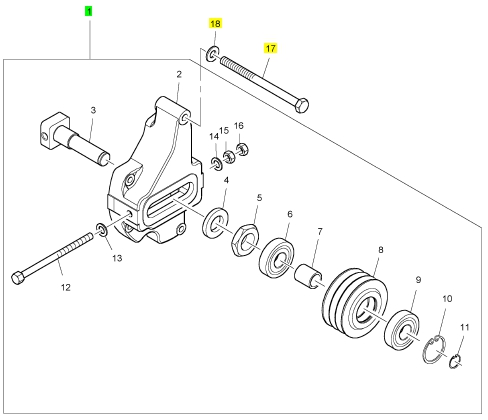

项序 零配件号码 最近的零配件号码 描述

1 CH11024 1 CH11024 紧张轮

1 CH11024 1 CH11024 紧张轮

17 CH10813 4 CH10813 螺拴

18 ST15903 4 ST15903 垫圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11024 1 CH11024 TENSIONER ARM

1 CH11024 1 CH11024 TENSIONER ARM

17 CH10813 4 CH10813 BOLT

18 ST15903 4 ST15903 WASHER

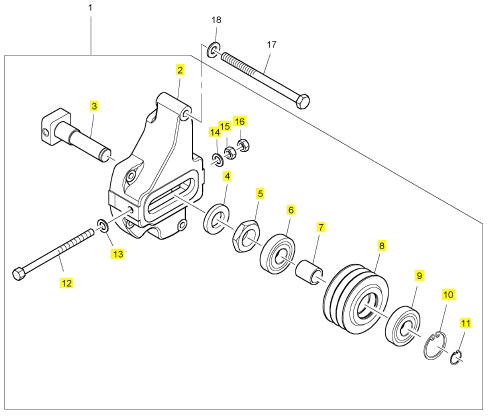

项序 零配件号码 最近的零配件号码 描述

2131 A012 2 2131 A012 垫圈

2318 A210 2 2318 A210 螺帽

CH11444 2 CH11444 滚珠轴承

2 1 壳

3 CV17729 1 CV17729 轴

4 CV17731 1 CV17731 垫圈

5 CV5324 1 CV5324 螺帽

6 CH11444 1 CH11444 滚珠轴承

7 CV17765 1 CV17765 套筒

8 CV17732 1 CV17732 拉紧带轮

9 CH11444 1 CH11444 滚珠轴承

10 2722 A022 1 2722 A022 CIRCLIP

11 2721351 1 2721351 CIRCLIP

12 CV19793 1 CV19793 螺拴

13 2131 A012 1 2131 A012 垫圈

14 2131 A012 1 2131 A012 垫圈

15 2318 A210 1 2318 A210 螺帽

16 2318 A210 1 2318 A210 螺帽

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2131A012 2 2131A012 WASHER

2318A210 2 2318A210 NUT

CH11444 2 CH11444 BALL BEARING

2 1 HOUSING

3 CV17729 1 CV17729 SHAFT

4 CV17731 1 CV17731 WASHER

5 CV5324 1 CV5324 NUT

6 CH11444 1 CH11444 BALL BEARING

7 CV17765 1 CV17765 SLEEVE

8 CV17732 1 CV17732 TENSIONER PULLEY

9 CH11444 1 CH11444 BALL BEARING

10 2722A022 1 2722A022 CIRCLIP

11 2721351 1 2721351 CIRCLIP

12 CV19793 1 CV19793 BOLT

13 2131A012 1 2131A012 WASHER

14 2131A012 1 2131A012 WASHER

15 2318A210 1 2318A210 NUT

16 2318A210 1 2318A210 NUT

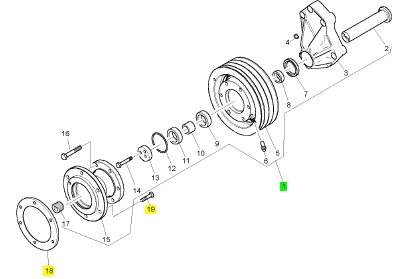

项序 零配件号码 最近的零配件号码 描述

1 CH12386 1 CH12386 FANDRIVE

1 CH12386 1 CH12386 FANDRIVE

18 CH12433 1 CH12433 圈

19 2315 C066 6 2315 C066 螺旋

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12386 1 CH12386 FANDRIVE

1 CH12386 1 CH12386 FANDRIVE

18 CH12433 1 CH12433 RING

19 2315C066 6 2315C066 SCREW

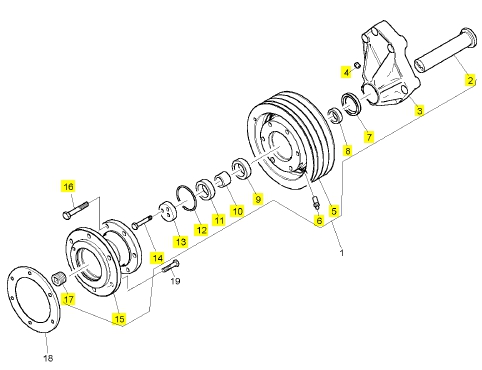

项序 零配件号码 最近的零配件号码 描述

2 CH12391 1 CH12391 轴

3 1

4 CH12908 1 CH12908 放泄阀

4 CH12376 1 CH12908 放泄阀

5 CH12387 1 CH12387 风扇皮带轮 223.5

6 CH12374 1 CH12374 球

7 CH12378 1 CH12378 密封垫

8 CH12379 1 CH12379 间隔器

9 CH12382 1 CH12382 滚珠轴承

10 CH12383 1 CH12383 间隔器

11 CH12375 1 CH12375 滚珠轴承

12 CH12384 1 CH12384 密封垫O形圈

13 CH12380 1 CH12380 垫圈

14 CH12377 2 CH12377 螺拴

15 CH12390 1 CH12390 承接器

16 CH10585 6 CH10585 螺拴

17 CH10220 1 CH10220 堵塞

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 CH12391 1 CH12391 SHAFT

3 1 FAN DRIVE HOUSING

4 CH12908 1 CH12908 RELIEF VALVE

4 CH12376 1 CH12908 RELIEF VALVE

5 CH12387 1 CH12387 FAN DRIVE PULLEY 223.5

6 CH12374 1 CH12374 BALL

7 CH12378 1 CH12378 SEAL

8 CH12379 1 CH12379 SPACER

9 CH12382 1 CH12382 BALL BEARING

10 CH12383 1 CH12383 SPACER

11 CH12375 1 CH12375 BALL BEARING

12 CH12384 1 CH12384 SEAL - O RING

13 CH12380 1 CH12380 WASHER

14 CH12377 2 CH12377 BOLT

15 CH12390 1 CH12390 ADAPTOR

16 CH10585 6 CH10585 BOLT

17 CH10220 1 CH10220 PLUG

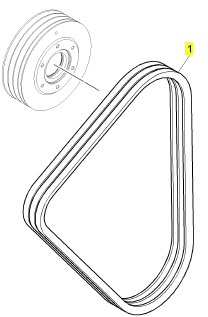

项序 零配件号码 最近的零配件号码 描述

1 CH11186 1 CH11186

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11186 1 CH11186 BELT

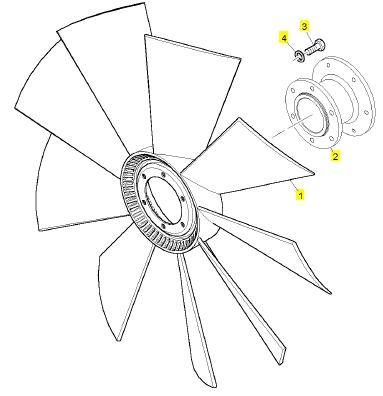

项序 零配件号码 最近的零配件号码 描述

2131 A010 6 2131 A010 垫圈

ST44456 6 ST44456 螺拴

1 CH11188 1 CH11188 风扇

2 1 风扇承接器

3 ST44456 6 ST44456 螺拴

4 CH10255 6 CH10255 垫圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2131A010 6 2131A010 WASHER

ST44456 6 ST44456 BOLT

1 CH11188 1 CH11188 FAN

2 1 FAN ADAPTOR

3 ST44456 6 ST44456 BOLT

4 CH10255 6 CH10255 WASHER

购买配件须知：

1、购买前请确认零部件型号、技术参数、编码、适用机型。因批次不同或存在零部件差异，请以实物为准。

2、为选购正确的零部件，可以通过对比现场零部件和本网站所展示的是否一致，来确保购买到准确的零部件。

3、本网站目前暂未上架全部机型的零部件，如在网站中未查询到的零部件，请联系我们。
