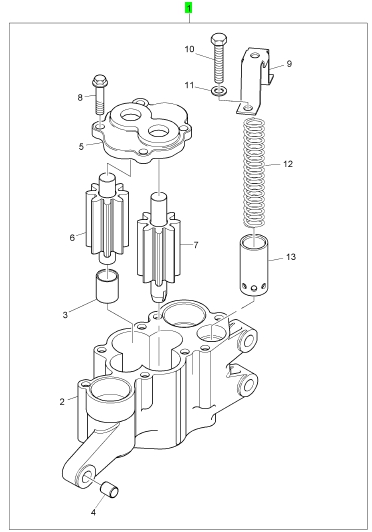

柴油发电机组CH10860 油泵

项序 零配件号码 最近的零配件号码 描述

1 CH10860 1 CH10860 油泵

(1) 半径/CH10860 1 半径/CH10860 油泵

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10860 1 CH10860 OIL PUMP

(1) R/CH10860 1 R/CH10860 OIL PUMP - EXCHANGE

项序 零配件号码 最近的零配件号码 描述

2 1 泵体

3 CH10746 2 CH10746 衬套

4 CH10747 2 CH10747 合钉

5 CH10861 1 CH10861 端盖

6 CH10862 1 CH10862 轴

7 CH10863 1 CH10863 驱动轴

8 CH10748 4 CH10748 螺拴

9 CH10736 1 CH10736 承件

10 CH10735 2 CH10735 螺拴

11 CH10541 2 CH10255 垫圈

12 CH10737 1 CH10737 弹簧

13 CH10738 1 CH10738 柱塞

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 PUMP BODY

3 CH10746 2 CH10746 BUSH

4 CH10747 2 CH10747 DOWEL

5 CH10861 1 CH10861 END COVER

6 CH10862 1 CH10862 SHAFT

7 CH10863 1 CH10863 DRIVE SHAFT

8 CH10748 4 CH10748 BOLT

9 CH10736 1 CH10736 RETAINER

10 CH10735 2 CH10735 BOLT

11 CH10541 2 CH10255 WASHER

12 CH10737 1 CH10737 SPRING

13 CH10738 1 CH10738 PLUNGER

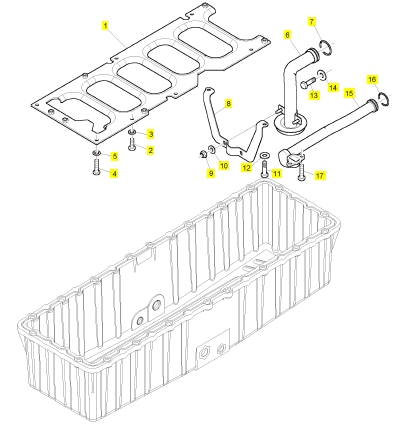

威尔逊发电机珀金斯柴油机CH10887 油底壳密封垫

项序 零配件号码 最近的零配件号码 描述

1 CH10789 1 CH10789 框

2 CH10537 5 CH11895 螺拴

3 CH10541 5 CH10255 垫圈

4 CH10550 2 CH10550 螺拴

5 CH10541 2 CH10255 垫圈

6 CH10968 1 CH10968 管- 油的吸入

7 CH10787 1 CH10787 密封垫O形圈

8 CH10855 1 CH10855 支撑托架

9 CH10785 2 CH10785 锁紧螺母

10 CH10615 2 CH10615 垫圈

11 CH11645 2 CH11645 螺拴

11 CH10784 2 CH11645 螺拴

12 CH10615 2 CH10615 垫圈

13 CH11645 2 CH11645 螺拴

13 CH10784 2 CH11645 螺拴

14 CH10615 2 CH10615 垫圈

15 CH10786 1 CH10786 油管

16 CH10788 1 CH10788 密封垫O形圈

17 CH10550 2 CH10550 螺拴

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10789 1 CH10789 FRAME

2 CH10537 5 CH11895 BOLT

3 CH10541 5 CH10255 WASHER

4 CH10550 2 CH10550 BOLT

5 CH10541 2 CH10255 WASHER

6 CH10968 1 CH10968 PIPE - OIL SUCTION

7 CH10787 1 CH10787 SEAL - O RING

8 CH10855 1 CH10855 SUPPORT BRACKET

9 CH10785 2 CH10785 LOCKNUT

10 CH10615 2 CH10615 WASHER

11 CH11645 2 CH11645 BOLT

11 CH10784 2 CH11645 BOLT

12 CH10615 2 CH10615 WASHER

13 CH11645 2 CH11645 BOLT

13 CH10784 2 CH11645 BOLT

14 CH10615 2 CH10615 WASHER

15 CH10786 1 CH10786 OIL PIPE

16 CH10788 1 CH10788 SEAL - O RING

17 CH10550 2 CH10550 BOLT

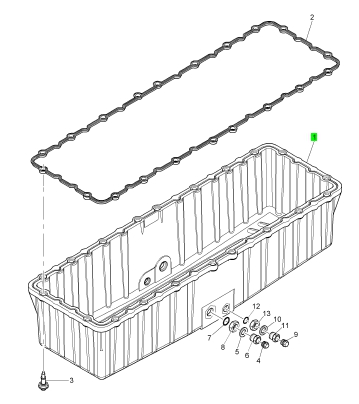

项序 零配件号码 最近的零配件号码 描述

1 CH11846 1 CH11846 油底壳

1 CH11846 1 CH11846 油底壳

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11846 1 CH11846 SUMP

1 CH11846 1 CH11846 SUMP

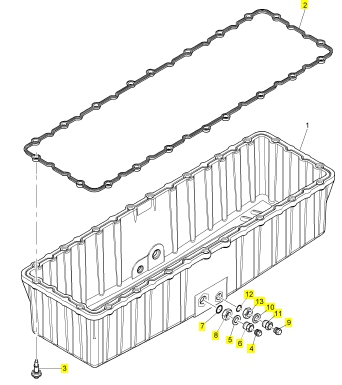

项序 零配件号码 最近的零配件号码 描述

2 CH10887 1 CH10887 密封垫-油底壳

3 CH10944 20 CH10944

4 CH10992 2 CH10992 排泄堵塞

5 ST49857 2 ST49857I 垫圈

6 CH11455 2 CH11455 油底壳承接器

7 CH10228 2 CH10228 密封垫O形圈

8 CH11459 2 CH11459 UNF 螺帽

9 CH12757 2 CH12757 油底壳排泄堵塞

9 CH10991 2 CH10991 排泄堵塞

10 CH11573 2 CH11573 密封垫O形圈

10 ST49950 2 ST49950 垫圈

11 CH11456 2 CH11456 承接器

12 CH10316 2 CH10316 密封垫O形圈

13 CH11460 2 CH11460 UNF 螺帽

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 CH10887 1 CH10887 SEAL - SUMP

3 CH10944 20 CH10944 FASTENER

4 CH10992 2 CH10992 DRAIN PLUG

5 ST49857 2 ST49857I WASHER

6 CH11455 2 CH11455 SUMP ADAPTOR

7 CH10228 2 CH10228 SEAL - O RING

8 CH11459 2 CH11459 UNF NUT

9 CH12757 2 CH12757 SUMP DRAIN PLUG

9 CH10991 2 CH10991 DRAIN PLUG

10 CH11573 2 CH11573 SEAL - O RING

10 ST49950 2 ST49950 WASHER

11 CH11456 2 CH11456 ADAPTOR

12 CH10316 2 CH10316 SEAL - O RING

13 CH11460 2 CH11460 UNF NUT
