珀金斯Perkins 柴油发电机组配件CH11218涡轮增压器

珀金斯Perkins 柴油发电机组配件CH11218涡轮增压器_珀金斯发动机配件_配件供应中心_产品中心_厦门永新昌机械设备有限公司

当前分类:配件供应中心关键词
产品信息

柴油发电机组配件CH11218涡轮增压器

项序 零配件号码 最近的零配件号码  描述

1 CH11218 1 CH11218 涡轮增压器

1 P/CH11218 1 半径/CH11218 涡轮增压器

1 半径/CH11218 1 半径/CH11218 涡轮增压器

(1) P/CH11218 1 半径/CH11218 涡轮增压器

(1) 半径/CH11218 1 半径/CH11218 涡轮增压器

2 CH11471 1 CH11471 密封垫 -涡轮增压器

2 CH10014 1 CH11471 密封垫 -涡轮增压器

3 CH10733 4 CH10733 螺拴

4 CH10734 4 CH10734 锁紧螺母

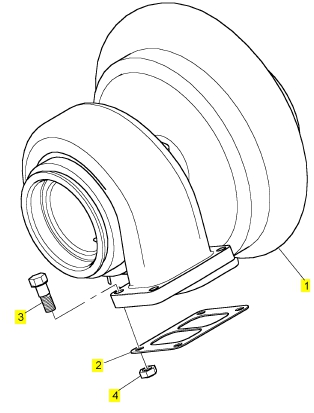

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11349 1 CH11349 TURBOCHARGER

2 CH11471 1 CH11471 GASKET - TURBOCHARGER

3 CH10733 4 CH10733 BOLT

4 CH10734 4 CH10734 LOCKNUT

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11218 1 CH11218 TURBOCHARGER

1 P/CH11218 1 R/CH11218 TURBOCHARGER

1 R/CH11218 1 R/CH11218 TURBOCHARGER - EXCHANGE

(1) P/CH11218 1 R/CH11218 TURBOCHARGER

(1) R/CH11218 1 R/CH11218 TURBOCHARGER - EXCHANGE

2 CH11471 1 CH11471 GASKET - TURBOCHARGER

2 CH10014 1 CH11471 GASKET - TURBOCHARGER

3 CH10733 4 CH10733 BOLT

4 CH10734 4 CH10734 LOCKNUT

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 CH10802 1 CH10802 SEAL - O RING

3 CH10805 1 CH10805 GASKET

4 CH10883 1 CH10883 GASKET

5 CH11471 1 CH11471 GASKET - TURBOCHARGER

6 CH10119 1 CH10119 SEAL - O RING

7 CH10132 2 CH10132 SEAL - O RING

8 CH10133 6 CH10133 SEAL - O RING

9 CH10229 12 CH10229 SEAL - O RING

10 CH10331 1 CH10331 GASKET

11 CH10380 1 CH10380 SEAL - O RING

12 CH10587 1 CH10587 SEAL - O RING

13 CH10667 1 CH10667 SEAL - O RING

14 CH10704 1 CH10704 SEAL - O RING

15 CH11486 24 CH11486 SEAL - VALVE STEM

16 CH10723 6 CH10723 SEAL - O RING

17 CH10726 6 CH10726 SEAL - O RING

18 CH10727 6 CH10727 SEAL - O RING

19 CH10777 6 CH10777 GASKET - EXHAUST MANIFOLD

20 CH10840 2 CH10840 SEAL - O RING

21 CH10870 1 CH10870 SEAL - O RING

22 CH10871 1 CH10871 SEAL - O RING

23 CH11353 1 CH11353 SEAL - ROCKER BOX COVER

24 CH11079 2 CH11079 SEAL - O RING

25 CH11927 1 CH11927 GASKET - EXHAUST OUTLET

26 1 SEAL - INJECTOR

27 1 SEAL - INJECTOR

28 1 SEAL - INJECTOR

29 1 GASKET - CYLINDER HEAD

30 1 GASKET

31 CH10668I 1 CH10668I SEAL

32 CH10703 24 CH10703 SEAL

33 CH10660 2 CH10660 SEAL - O RING

34 CH10620 1 CH10620 SEAL - O RING

35 CH10612 1 CH10612 SEAL - O RING

36 CH11606 1 CH11606 GASKET - EXHAUST OUTLET

项序 零配件号码 最近的零配件号码  描述

1 CH11219 1 CH11219 管 - 涡轮增压器的油补给

2 CH11225 2 CH11225 螺拴

3 CH10805 1 CH10805 密封垫

4 CH10915 1 CH10915 夹

5 CH10915 1 CH10915 夹

6 CH10815 1 CH10815 螺拴

7 CH10916 1 CH10916 垫圈

8 CH10290 1 CH10798 螺帽

9 CH10806 1 CH10806 连接器

10 CH10667 1 CH10667 密封垫O形圈

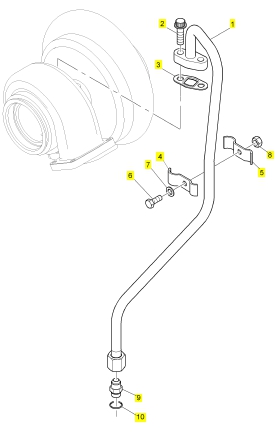

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11219 1 CH11219 PIPE - TURBO OIL FEED

2 CH11225 2 CH11225 BOLT

3 CH10805 1 CH10805 GASKET

4 CH10915 1 CH10915 CLAMP

5 CH10915 1 CH10915 CLAMP

6 CH10815 1 CH10815 BOLT

7 CH10916 1 CH10916 WASHER

8 CH10290 1 CH10798 NUT

9 CH10806 1 CH10806 CONNECTOR

10 CH10667 1 CH10667 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10997 1 CH10997 PIPE - TURBO OIL DRAIN

2 CH11225 2 CH11225 BOLT

3 CH11194 1 CH11194 GASKET

4 CH10567 2 CH10567 BOLT

5 CH10541 4 CH10255 WASHER

6 CH10802 1 CH10802 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 CH10008 1 CH10008 GASKET

3 CH10048 1 CH10048 SEAL - O RING

4 CH10056 2 CH10056 SEAL - THERMOSTAT HOUSING

5 CH10091 2 CH10091 SEAL - O RING

6 CH10131 2 CH10131 SEAL - O RING

7 CH10132 2 CH10132 SEAL - O RING

8 CH10133 5 CH10133 SEAL - O RING

9 CH10224 2 CH10224 SEAL - O RING

10 CH10228 1 CH10228 SEAL - O RING

11 CH10230 4 CH10230 SEAL - O RING

12 CH10310 1 CH10310 GASKET

13 CH10316 2 CH10316 SEAL - O RING

14 CH10340 1 CH10340 SEAL - O RING

15 CH10380 2 CH10380 SEAL - O RING

16 CH10540 1 CH10540 GASKET

17 CH10543 1 CH10543 SEAL - O RING

18 CH10544 3 CH10544 SEAL - O RING

19 CH10545 1 CH10545 SEAL - O RING

20 CH12889 1 CH12889 SEAL - WATER PUMP

20 CH10552 1 CH12889 SEAL - WATER PUMP

21 CH10554 1 CH10554 SEAL - WATER PUMP

22 1 GASKET - BLANKING PLATE

23 CH10579 2 CH10579 GASKET

24 CH10590 1 CH10590 SEAL - O RING

25 CH11379 1 CH11379 SEAL - FRONT END OIL

26 CH10657 2 CH10657 SEAL - O RING

27 CH10665 1 CH10665 SEAL - O RING

28 CH10667 1 CH10667 SEAL - O RING

29 CH10674 6 CH10674 SEAL - OIL

30 CH10675 6 CH10675 SEAL - OIL

31 CH10677 6 CH10677 SEAL - OIL

32 CH10755 2 CH10755 SEAL - O RING

33 CH10757 1 CH10757 SEAL

34 CH10766 1 CH10766 SEAL - O RING

35 CH10770 1 CH10770 SEAL - THERMOSTAT HOUSING

36 CH11304 1 CH11304 SEAL - REAR END OIL

37 CH10787 1 CH10787 SEAL - O RING

38 CH10788 1 CH10788 SEAL - O RING

39 CH10816 2 CH10816 SEAL - O RING

40 CH10829 1 CH10829 GASKET - TIMING CASE

41 CH10837 1 CH10837 SEAL - O RING

42 CH10839 1 CH10839 SEAL - O RING

43 CH10840 4 CH10840 SEAL - O RING

44 CH10875 1 CH10875 SEAL - O RING

45 CH11125 2 CH11125 SEAL - O RING

46 CH12010 3 CH12010 SEAL

46 CH11139 3 CH12010 SEAL - O RING

47 ST49950 2 ST49950 WASHER

48 ST49857I 2 ST49857I WASHER

48 ST49857 2 ST49857I WASHER

49 CH10802 1 CH10802 SEAL - O RING

50 CH10883 1 CH10883 GASKET

51 CH11352 1 CH11352 SEAL

52 CH10887 1 CH10887 SEAL - SUMP

53 CH10940 1 CH10940 GASKET

54 CH11102 1 CH11102 SEAL - O RING

55 CH10805 1 CH10805 GASKET

56 CH10046 5 CH10046 SEAL - O RING

56 CH10046 1 CH10046 SEAL - O RING

购买配件须知:

1、购买前请确认零部件型号、技术参数、编码、适用机型。因批次不同或存在零部件差异,请以实物为准。

2、为选购正确的零部件,可以通过对比现场零部件和本网站所展示的是否一致,来确保购买到准确的零部件。

3、本网站目前暂未上架全部机型的零部件,如在网站中未查询到的零部件,请联系我们。
