英国珀金斯柴油机配件曲轴U836850G

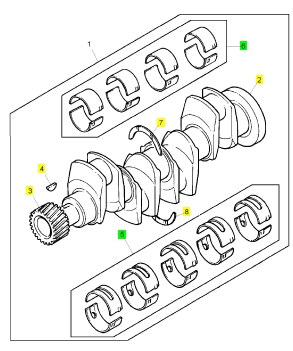

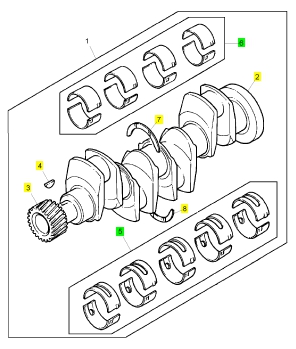

项目 零配件号码 最近的部分号码

2 1 曲轴

3 3117 C191 1 3117 C191 曲轴传动机构

4 0500012 1 0500012 半圆键

5 U5MB0015 1 U5MB0015 曲轴瓦装备

(5) U5MB0015A 1 U5MB0015A 曲轴瓦装备 -U/S

(5) U5MB0015B 1 U5MB0015B 曲轴瓦装备 -U/S

(5) U5MB0015C 1 U5MB0015C 曲轴瓦装备 -U/S

6 U5ME0012 1 U5ME0012 连杆瓦装备

(6) U5ME0012A 1 U5ME0012A 大头 BRG 装备 -U/S

(6) U5ME0012B 1 U5ME0012B 大头 BRG 装备 -U/S

(6) U5ME0012C 1 U5ME0012C 大头 BRG 装备 -U/S

7 3112 T001 1 3112 T001 止推垫圈

(7) 3112 T002 1 3112 T002 止推垫圈

8 3112 T001 1 3112 T001 止推垫圈

(8) 3112 T002 1 3112 T002 止推垫圈

项目 零配件号码 最近的部分号码

2 1 曲轴

3 3117 C191 1 3117 C191 曲轴传动机构

4 0500012 1 0500012 半圆键

5 U5MB0015 1 U5MB0015 曲轴瓦装备

(5) U5MB0015A 1 U5MB0015A 曲轴瓦装备 -U/S

(5) U5MB0015B 1 U5MB0015B 曲轴瓦装备 -U/S

(5) U5MB0015C 1 U5MB0015C 曲轴瓦装备 -U/S

6 U5ME0012 1 U5ME0012 连杆瓦装备

(6) U5ME0012A 1 U5ME0012A 大头 BRG 装备 -U/S

(6) U5ME0012B 1 U5ME0012B 大头 BRG 装备 -U/S

(6) U5ME0012C 1 U5ME0012C 大头 BRG 装备 -U/S

7 3112 T001 1 3112 T001 止推垫圈

(7) 3112 T002 1 3112 T002 止推垫圈

8 3112 T001 1 3112 T001 止推垫圈

(8) 3112 T002 1 3112 T002 止推垫圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3681E029 1 3681E029 GASKET - CYLINDER HEAD

3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER

4 3685A011 1 3685A011 GASKET - WATER PUMP

5 36834169 1 36834169 GASKET - WATER CONNECTION

6 3681V009 1 3681V009 GASKET - IND MANIFOLD

7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD

8 U3688C037 1 U3688C037 GASKET

9 2415H490 4 2415H490 SEAL - INJECTOR

10 L311FF02 4 L311FF02 INJECTOR WASHER

11 4141A009 4 4141A009 CLAMP

14 2418M508 8 2418M508 SEAL - VALVE STEM

15 26420224 8 26420224 SEAL - INJECTOR

16 33811112 1 33811112 OLIVE

17 33811113 3 33811113 OLIVE

18 33811115 2 33811115 OLIVE

19 0566003 1 0566003 OLIVE

20 3682M002 1 3682M002 GASKET - WATER PUMP

21 2415A086 1 2415A086 SEAL - O RING

22 2415A092 1 2415A092 SEAL - O RING

项目 零配件号码 最近的部分号码

2 1 曲轴

3 3117 C191 1 3117 C191 曲轴传动机构

4 0500012 1 0500012 半圆键

5 U5MB0015 1 U5MB0015 曲轴瓦装备

(5) U5MB0015A 1 U5MB0015A 曲轴瓦装备 -U/S

(5) U5MB0015B 1 U5MB0015B 曲轴瓦装备 -U/S

(5) U5MB0015C 1 U5MB0015C 曲轴瓦装备 -U/S

6 U5ME0012 1 U5ME0012 连杆瓦装备

(6) U5ME0012A 1 U5ME0012A 大头 BRG 装备 -U/S

(6) U5ME0012B 1 U5ME0012B 大头 BRG 装备 -U/S

(6) U5ME0012C 1 U5ME0012C 大头 BRG 装备 -U/S

7 3112 T001 1 3112 T001 止推垫圈

(7) 3112 T002 1 3112 T002 止推垫圈

8 3112 T001 1 3112 T001 止推垫圈

(8) 3112 T002 1 3112 T002 止推垫圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CRANKSHAFT

3 3117C191 1 3117C191 CRANKSHAFT GEAR

4 0500012 1 0500012 WOODRUFF KEY

5 U5MB0015 1 U5MB0015 MAIN BEARING KIT

(5) U5MB0015A 1 U5MB0015A MAIN BEARING KIT - U/S

(5) U5MB0015B 1 U5MB0015B MAIN BEARING KIT - U/S

(5) U5MB0015C 1 U5MB0015C MAIN BEARING KIT - U/S

6 U5ME0012 1 U5ME0012 BIG END BEARING KIT

(6) U5ME0012A 1 U5ME0012A BIG END BRG KIT - U/S

(6) U5ME0012B 1 U5ME0012B BIG END BRG KIT - U/S

(6) U5ME0012C 1 U5ME0012C BIG END BRG KIT - U/S

7 3112T001 1 3112T001 THRUST WASHER

(7) 3112T002 1 3112T002 THRUST WASHER

8 3112T001 1 3112T001 THRUST WASHER

(8) 3112T002 1 3112T002 THRUST WASHER

2 3681E029 1 3681E029 GASKET - CYLINDER HEAD

3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER

4 3685A011 1 3685A011 GASKET - WATER PUMP

5 36834169 1 36834169 GASKET - WATER CONNECTION

6 3681V009 1 3681V009 GASKET - IND MANIFOLD

7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD

8 U3688C037 1 U3688C037 GASKET

9 2415H490 4 2415H490 SEAL - INJECTOR

10 L311FF02 4 L311FF02 INJECTOR WASHER

11 4141A009 4 4141A009 CLAMP

14 2418M508 8 2418M508 SEAL - VALVE STEM

15 26420224 8 26420224 SEAL - INJECTOR

16 33811112 1 33811112 OLIVE

17 33811113 3 33811113 OLIVE

18 33811115 2 33811115 OLIVE

19 0566003 1 0566003 OLIVE

20 3682M002 1 3682M002 GASKET - WATER PUMP

21 2415A086 1 2415A086 SEAL - O RING

22 2415A092 1 2415A092 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3684N023 1 3684N023 GASKET - SUMP

3 3688X003 2 3688X003 SEAL - OIL

4 3688X004 4 3688X004 SEAL - OIL

5 3685A009 1 3685A009 GASKET

6 3685R007 1 3685R007 GASKET - LIFT PUMP

7 3684C004 1 3684C004 GASKET

8 3687M031 1 3687M031 GASKET - TIMING CASE COVER

9 3687M036 1 3687M036 GASKET - TIMING CASE COVER

10 3687M032 1 3687M032 GASKET - TIMING CASE

11 2415A015 1 2415A015 SEAL - O RING

12 2415A039 1 2415A039 SEAL - O RING

13 2415H031 1 2415H031 SEAL - O RING

14 2415A092 1 2415A092 SEAL - O RING

15 2415A036 1 2415A036 SEAL - SENSOR

16 2415B135 1 2415B135 SEAL - O RING

17 2415715 4 2415715 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 UC39519P 1 UC39519 SHORT ENGINE - ASSEMBLY

2 UC39518 1 UC39519 SHORT ENGINE - ASSEMBLY

2 UC39519 1 UC39519 SHORT ENGINE - ASSEMBLY

4 ZZ80264 1 ZZ80264 CYLINDER HEAD ASSEMBLY

7 3218A506 14 3218A506 SCREW

8 3218J605 4 3218J605 SCREW

9 U5LT0343 1 U5LT0343 GASKET KIT - TOP

10 U5LB0369 1 U5LB0369 GASKET KIT - BOTTOM

11 2418F546 1 2418F546 SEAL - FRONT END OIL

项目 零配件号码 最近的部分号码

2 1 曲轴

3 3117 C191 1 3117 C191 曲轴传动机构

4 0500012 1 0500012 半圆键

5 U5MB0015 1 U5MB0015 曲轴瓦装备

(5) U5MB0015A 1 U5MB0015A 曲轴瓦装备 -U/S

(5) U5MB0015B 1 U5MB0015B 曲轴瓦装备 -U/S

(5) U5MB0015C 1 U5MB0015C 曲轴瓦装备 -U/S

6 U5ME0012 1 U5ME0012 连杆瓦装备

(6) U5ME0012A 1 U5ME0012A 大头 BRG 装备 -U/S

(6) U5ME0012B 1 U5ME0012B 大头 BRG 装备 -U/S

(6) U5ME0012C 1 U5ME0012C 大头 BRG 装备 -U/S

7 3112 T001 1 3112 T001 止推垫圈

(7) 3112 T002 1 3112 T002 止推垫圈

8 3112 T001 1 3112 T001 止推垫圈

(8) 3112 T002 1 3112 T002 止推垫圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CRANKSHAFT

3 3117C191 1 3117C191 CRANKSHAFT GEAR

4 0500012 1 0500012 WOODRUFF KEY

5 U5MB0015 1 U5MB0015 MAIN BEARING KIT

(5) U5MB0015A 1 U5MB0015A MAIN BEARING KIT - U/S

(5) U5MB0015B 1 U5MB0015B MAIN BEARING KIT - U/S

(5) U5MB0015C 1 U5MB0015C MAIN BEARING KIT - U/S

6 U5ME0012 1 U5ME0012 BIG END BEARING KIT

(6) U5ME0012A 1 U5ME0012A BIG END BRG KIT - U/S

(6) U5ME0012B 1 U5ME0012B BIG END BRG KIT - U/S

(6) U5ME0012C 1 U5ME0012C BIG END BRG KIT - U/S

7 3112T001 1 3112T001 THRUST WASHER

(7) 3112T002 1 3112T002 THRUST WASHER

8 3112T001 1 3112T001 THRUST WASHER

(8) 3112T002 1 3112T002 THRUST WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3681E029 1 3681E029 GASKET - CYLINDER HEAD

3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER

4 3685A011 1 3685A011 GASKET - WATER PUMP

5 36834169 1 36834169 GASKET - WATER CONNECTION

6 3681V009 1 3681V009 GASKET - IND MANIFOLD

7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD

8 U3688C037 1 U3688C037 GASKET

9 2415H490 4 2415H490 SEAL - INJECTOR

10 L311FF02 4 L311FF02 INJECTOR WASHER

11 4141A009 4 4141A009 CLAMP

14 2418M508 8 2418M508 SEAL - VALVE STEM

15 26420224 8 26420224 SEAL - INJECTOR

16 33811112 1 33811112 OLIVE

17 33811113 3 33811113 OLIVE

18 33811115 2 33811115 OLIVE

19 0566003 1 0566003 OLIVE

20 3682M002 1 3682M002 GASKET - WATER PUMP

21 2415A086 1 2415A086 SEAL - O RING

22 2415A092 1 2415A092 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 3684N023 1 3684N023 GASKET - SUMP

3 3688X003 2 3688X003 SEAL - OIL

4 3688X004 4 3688X004 SEAL - OIL

5 3685A009 1 3685A009 GASKET

6 3685R007 1 3685R007 GASKET - LIFT PUMP

7 3684C004 1 3684C004 GASKET

8 3687M031 1 3687M031 GASKET - TIMING CASE COVER

9 3687M036 1 3687M036 GASKET - TIMING CASE COVER

10 3687M032 1 3687M032 GASKET - TIMING CASE

11 2415A015 1 2415A015 SEAL - O RING

12 2415A039 1 2415A039 SEAL - O RING

13 2415H031 1 2415H031 SEAL - O RING

14 2415A092 1 2415A092 SEAL - O RING

15 2415A036 1 2415A036 SEAL - SENSOR

16 2415B135 1 2415B135 SEAL - O RING

17 2415715 4 2415715 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CRANKSHAFT

3 3117C191 1 3117C191 CRANKSHAFT GEAR

4 0500012 1 0500012 WOODRUFF KEY

5 U5MB0015 1 U5MB0015 MAIN BEARING KIT

(5) U5MB0015A 1 U5MB0015A MAIN BEARING KIT - U/S

(5) U5MB0015B 1 U5MB0015B MAIN BEARING KIT - U/S

(5) U5MB0015C 1 U5MB0015C MAIN BEARING KIT - U/S

6 U5ME0012 1 U5ME0012 BIG END BEARING KIT

(6) U5ME0012A 1 U5ME0012A BIG END BRG KIT - U/S

(6) U5ME0012B 1 U5ME0012B BIG END BRG KIT - U/S

(6) U5ME0012C 1 U5ME0012C BIG END BRG KIT - U/S

7 3112T001 1 3112T001 THRUST WASHER

(7) 3112T002 1 3112T002 THRUST WASHER

8 3112T001 1 3112T001 THRUST WASHER

(8) 3112T002 1 3112T002 THRUST WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CRANKSHAFT

3 3117C191 1 3117C191 CRANKSHAFT GEAR

4 0500012 1 0500012 WOODRUFF KEY

5 U5MB0015 1 U5MB0015 MAIN BEARING KIT

(5) U5MB0015A 1 U5MB0015A MAIN BEARING KIT - U/S

(5) U5MB0015B 1 U5MB0015B MAIN BEARING KIT - U/S

(5) U5MB0015C 1 U5MB0015C MAIN BEARING KIT - U/S

6 U5ME0012 1 U5ME0012 BIG END BEARING KIT

(6) U5ME0012A 1 U5ME0012A BIG END BRG KIT - U/S

(6) U5ME0012B 1 U5ME0012B BIG END BRG KIT - U/S

(6) U5ME0012C 1 U5ME0012C BIG END BRG KIT - U/S

7 3112T001 1 3112T001 THRUST WASHER

(7) 3112T002 1 3112T002 THRUST WASHER

8 3112T001 1 3112T001 THRUST WASHER

(8) 3112T002 1 3112T002 THRUST WASHER

7 4111 A514 1 4111 A514 凸轮轴组合 U836850G

7 4111 A512 1 4111 A512 凸轮轴组合 U836849G

12 3241 P001 1 3241 P001 板

13 2314 F002 1 2314 F002 螺旋

14 4115 H001 1 4115 H001 重量

15 2314 E002 4 2314 E002 螺旋

16 3112 X005 1 3112 X005 滑件

17 3251 H002 1 3211 A003 螺旋

17 3251 H001 1 3211 A003 螺旋

18 3311 A007 1 3311 A007 垫圈

19 3346 C009 1 3346 C009 螺帽

20 3174 H002 1 3174 H002 弹簧

21 3274 K005 1 3274 K005 螺帽

22 3175 D005 1 3175 D005 拉力弹簧

23 U3737P002 1 U3737P002 臂

24 3212 C004 1 3212 C004 桥

24 3212 C003 1 3212 C004 桥

25 0500002 1 0500002 半圆键

26 2415 A028 2 2415 A028 密封 - O 的圈

27 2318 A207 1 2318 A207 螺帽

28 2134 A006 1 2134 A006 垫圈

29 1 杆

30 1 螺帽

31 2131 A504 1 2131 A504 垫圈

32 3214 Y002 1 3214 Y002 螺旋

33 2318 A207 1 2318 A207 螺帽

34 2315 C039 1 2315 C039 螺旋

35 2318 A207 1 2318 A207 螺帽

36 3175 A004 1 3175 A004 弹簧

37 3174 D007 1 3174 D007 弹簧

38 3736 A805 1 3736 A805 连杆

39 3175 A002 1 3175 A002 弹簧

40 U3272A005 1 U3272A005 销

41 2727 A004 1 2727 A004 CIRCLIP

42 3272 A003 1 3272 A003 销

43 3175 A003 1 3175 A003 弹簧

44 1 销

45 2487 F001 1 2487 F001 栓塞

46 2648 A117 1 26420462 帽

47 2648 A120 1 2648 A120 螺帽

48 3173 R003 1 3173 R003 圈

49 3272 A009 1 U5MK0393 帽

49 3272 A006 1 U5MK0393 帽

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CRANKSHAFT

3 3117C191 1 3117C191 CRANKSHAFT GEAR

4 0500012 1 0500012 WOODRUFF KEY

5 U5MB0015 1 U5MB0015 MAIN BEARING KIT

(5) U5MB0015A 1 U5MB0015A MAIN BEARING KIT - U/S

(5) U5MB0015B 1 U5MB0015B MAIN BEARING KIT - U/S

(5) U5MB0015C 1 U5MB0015C MAIN BEARING KIT - U/S

6 U5ME0012 1 U5ME0012 BIG END BEARING KIT

(6) U5ME0012A 1 U5ME0012A BIG END BRG KIT - U/S

(6) U5ME0012B 1 U5ME0012B BIG END BRG KIT - U/S

(6) U5ME0012C 1 U5ME0012C BIG END BRG KIT - U/S

7 3112T001 1 3112T001 THRUST WASHER

(7) 3112T002 1 3112T002 THRUST WASHER

8 3112T001 1 3112T001 THRUST WASHER

(8) 3112T002 1 3112T002 THRUST WASHER

购买配件须知：

1、购买前请确认零部件型号、技术参数、编码、适用机型。因批次不同或存在零部件差异，请以实物为准。

2、为选购正确的零部件，可以通过对比现场零部件和本网站所展示的是否一致，来确保购买到准确的零部件。

3、本网站目前暂未上架全部机型的零部件，如在网站中未查询到的零部件，请联系我们。
